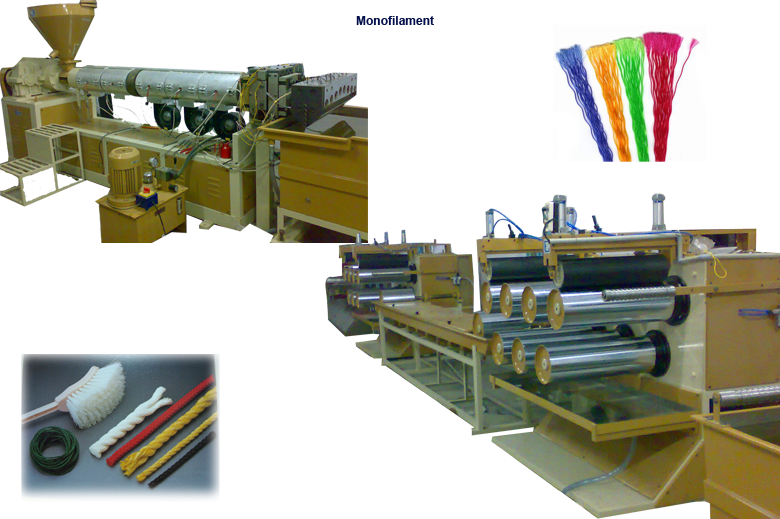

Mono-filament Extrusion Line Produce higher transparency and more competent strength monofilament with supreme mechanism and rigid standard of craftsmanship as well as long experience in this field.
APPLICATIONS
Net, Filter, Fishing net, Ropes, Textile, Carpet, Brushes, and Niwar etc.
QUALITY FEATURES
The screw and Barrel is manufatured from special Nitrogen treated.
Precision ground and tempered steel.
High L/D Ratio for Higher output.
Cooling bath is constructed from Stainless Steel to Prevent corrosion.
Take-off speed is powered by VS motor with adjustable spped for amooth winding and stretching performance.
Orientation device is especially designed to allow the filament to flow on water thus ensuring proper filament roundness, uniformity and smoothness.
Different types of winder can be provided depends upon product and customer requirement.
| SPECIFICATIONS |
| Model EXTMC | EXTMC 50 MFM | EXTMC 65 MFM | EXTMC 75 MFM | EXTMC 90 MFM |
| Screw dia (mm) | 50 | 65 | 75 | 90 |
| L/D Ratio | 26:1 | 28:1 | 30:1 | 30:1 |
| Max. Out Put (Kg./hr) | 32 | 50 | 80 | 110 |
| No of Filaments | 100 | 150 | 240 | 360 |
| Total Connected Load (KW.) | 27 | 40 | 60 | 80 |
| Flange Winders | 8 Nos | 14 Nos | 18 Nos | 28 Nos |
| Dimensions Without winder in Mtrs (L*W*H) | 15 * 7 * 3 | 20 * 8 * 3 | 25 * 10 * 3 | 30 * 10 * 3 |
