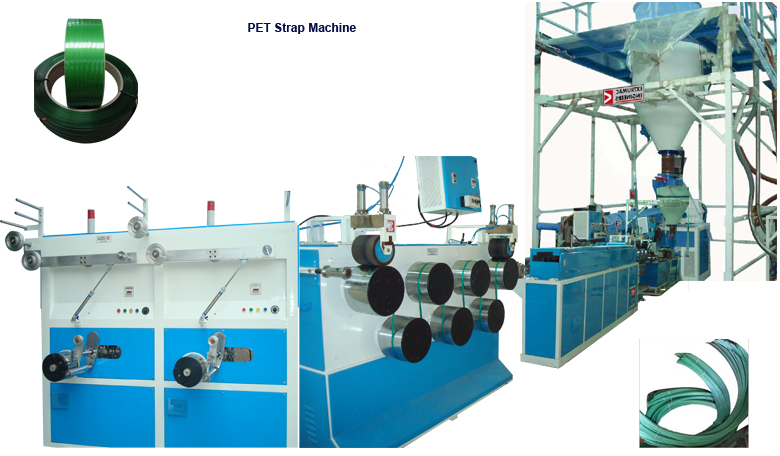

Our New Innovation PET Strapping Band making Extrusion Line for producing PET strap with 100% reclaimed polyester (waste polyester bottle flakes) as material. PET strap is a new kind of environment friendly packing material, which is used to substitute steel strap in many fields.

FEATURES

Auto Cycle for pre-heating, drying & Loading

Completely insulated oven with thermo regulated air.

Output range 80 to 200 Kgs./hour.

Band width 9 - 19 mm.

Precision Strap band with +/- 0.5 mm.

high output with low power concumption.

Hydraulic screen changer for efficient operation

OPTIONAL EQUIPMENT

Auto Cycle for pre-heating, drying & Loading

Completely insulated oven with thermo regulated air.

Output range 80 to 200 Kgs./hour.

SPECIFICATIONS

Model EXTMC	EXTMC 50BSPP	EXTMC 65BSPPSS
Screw dia (mm)	50	65
L/D Ratio	28.1	28.1
Max. Out Put (Kg./hr)	32	50
Max. Line Speed (Mtr./Min.)	130	130
Winder	2 Station Winder	3 Station Winder
Total Connected Load (KW.)	40	60
Plant Dimensions in Mtrs. (LXWXH)	20 * 7 * 3.5	30 * 7 * 4
