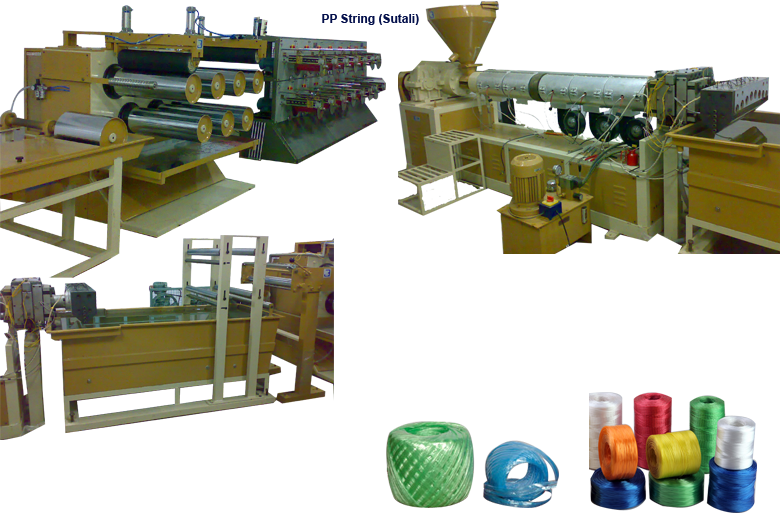

PP String (Sutli) manufacturing line produce higher output, better quality and cost competitive

Extruder adopts 'T' Die for more convenient to operate and higher production.

The stretching units adopts two units of rollers for stepless adjustment of the stretching ratio.

Auto winders are provided in different width size of coils.

APPLICATIONS:

To tieing bundles, bags, boxes etc.

SPECIFICATIONS

Model EXTMC	EXTMC 50 SM	EXTMC 65 SM
Screw dia (mm)	50	65
L/D Ratio	28:1	30:1
Max. Out Put (Kg./hr)	30	45
T Die Width (mm)	300	450
Max. Line Speed (Mtr./Min.)	120	120
Cheese Winder	10 Nos	16 Nos
Total Connected Load (KW.)	35	55
Plant Dimensions in Mtrs.	18 * 7 * 3	20 * 5 * 4
(L * W * H)
